A. Astimex Metal Standards

METM25-44 and METM12-44

Go to:
44 Metals Standard Mount METM25-44

1.

Beryllium

Be



12.

Iron

Fe



23.

Ruthenium

Ru



34.

Tungsten

W

2.

Boron Nitride

BN



13.

Cobalt

Co



24.

Rhodium

Rh



35.

Rhenium

Re

3.

Carbon

C



14.

Nickel

Ni



25.

Palladium

Pd



36.

Osmium

Os

4.

Magnesium

Mg



15.

Copper

Cu



26.

Silver

Ag



37.

Iridium

Ir

5.

Aluminum

Al



16.

Zinc

Zn



27.

Cadmium

Cd



38.

Platinum

Pt

6.

Silicon

Si



17.

Germanium

Ge



28.

Indium Phosphide

InP



39.

Gold

Au

7.

Scandium

Sc



18.

Gallium Arsenide

GaAs



29.

Tin

Sn



40.

Thallium Bromide/Iodide

TlBr 42 Mole%
TlI 58 Mole%

8.

Titanium

Ti



19.

Selenium

Se



30.

Antimony

Sb



41.

Lead

Pb

9.

Vanadium

V



20.

Zirconium

Zr



31.

Tellurium

Te



42.

Bismuth

Bi

10.

Chromium

Cr



21.

Niobium

Nb



32.

Hafnium

Hf



43.

Thorium

Th

11.

Manganese

Mn



22.

Molybdenum

Mo



33.

Tantalum

Ta



44.

Uranium

U

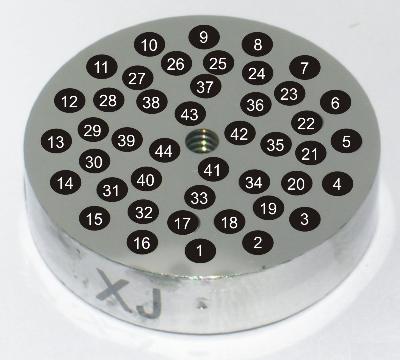

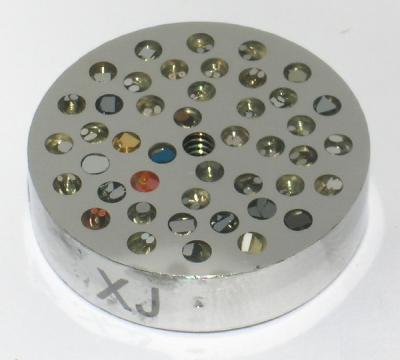

This mount contains 40 metallic element standard materials, and four compounds for hard-to-polish metals, giving all together 49 different elements. Purity is no less than 99%; most are better than "99.99%". A listing of individual purities is supplied with purchase.  All 44 items are mounted on one 25mm diameter, 6mm thick stainless steel mount, catalog identification METM25-44. An optional Faraday cup can be mounted centrally in the threaded hole.

The set is also available split between three stainless steel mounts, each of which is 12.5mm diameter, 4mm high and is suitable for attaching to an SEM stub, catalog identification METM12-44.
